Alpha-Cure are able to offer UV LED Test Dosimeters.
Looking for Mercury 365nm Testing kits? Click Here.
UV Test Dot Dosimeters for UV LED 260 – 280nm Systems

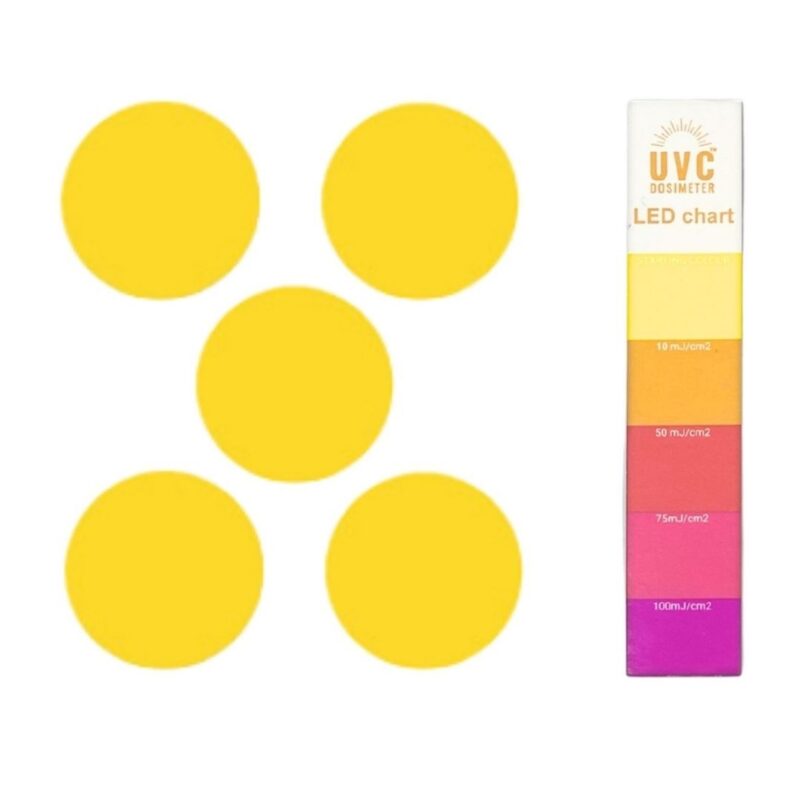

UV-C LED Dots are compact, single-use UV dosimeters engineered to visually confirm and measure exposure to UV LED energy within the 260–280 nm wavelength range.
Features
- For measuring curing of UV-C LED at 260-280nm
- Easy to read Colour Reference Chart – 10, 50, 75, 100mJ/cm² energy thresholds
- Adhesive backing for use on any substrate or placement
Specification
- 5 Dosimeter Dots + 1 Colour Reference Chart per pack
- Compact 1 inch diameter Dots
- 3-year shelf life
- Single use only
- Keep away from direct sunlight
- Store in dry, cool place such as desk drawer
How to use
- Apply the Dot to a representative area on or near the cured material.
- Expose the Dot during the curing cycle using your UV-C LED system.
- Review the colour of the Dot immediately after exposure and compare the colour to the included reference chart to determine the dose received.
- Record and store results for quality assurance documentation.
For accurate readings, it is best to assess the Dot’s colour immediately after the curing cycle.
